Tempercon

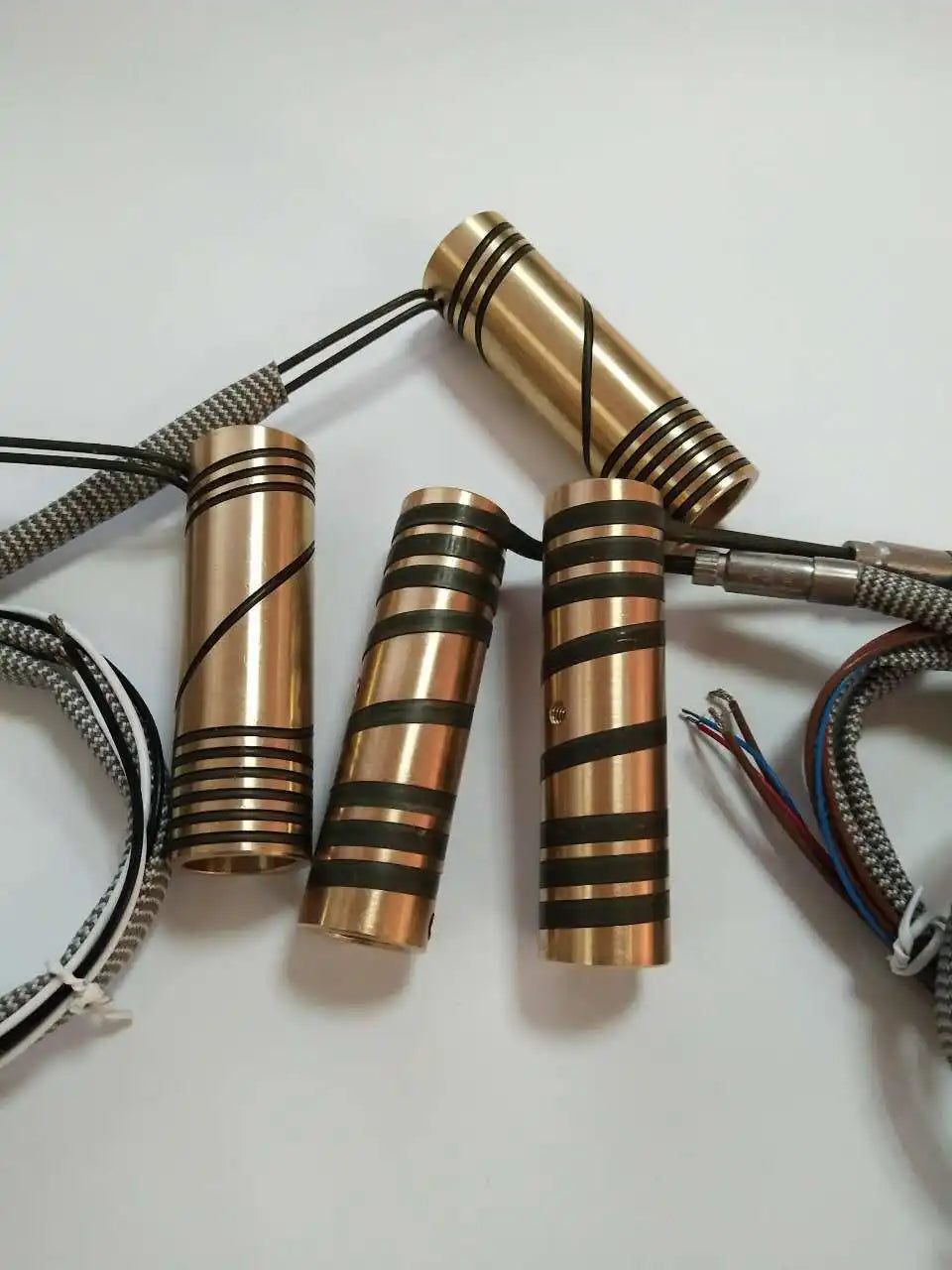

Copper Coil Heater
Copper Coil Heater
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
- GeneralSpecifications
Applicable Industries:Hot runner，PET hot runner,Injection Machine,plastic machine，,Hot Runner Manifolds
Min. order 100 pieces
LT: 10-20 DAYS
Test Report:Provided
Weight: 0.4 KG
Warranty period：18 months
Dimension(L*W*H):Custom Size
|
Copper sleeve material |
1.8,2.2*4.2,3*3, 3.5*3.5, 4.0*2.5 |
|
Voltage |
110V，220V，230V，240V，380V |
|
power |
100W~2000W |
|
Minimum wall thickness of copper |
3mm |
|
Copper sleeve diameter |
8mm~60mm |
|
Length of copper sleeve |
25mm~200mm |
|
Inner diameter tolerance |
±0.05mm |
|
Copper sleeve length tolerance |
±0.05mm |
|
Thermocouple |
The heating wire comes with a thermocouple or a separate pin thermocouple is inlaid on the copper sleeve |
- Features
- The contact area of the inlaid heating wire is large, the heat transfer effect is close and the appearance is neat, beautiful and high-grade.
- Custom processing, according to the requirements of different customer products, processing custom power and arranging heating wires to achieve better results.
- Various choices of heating wire: round heating wire 1.8mm, 2.0mm,Square flat heating wire: 2.2 * 4.2, 3.0 * 3.0, 3.5 * 3.5, 4.0*2.5 etc. to choose the thickness of the copper sleeve wall, saving space for small mold opening frame.
- Use environmentally friendly copper materials to reduce environmental pollution; save energy and electricity, and save costs. Insulation over 500 megohms, resistance +/- 1%
- Import of main raw materials: resistance wires imported from Germany, high-density magnesium oxide tubes imported from the United States, high-temperature resistant wires, and high-quality raw materials to ensure quality
