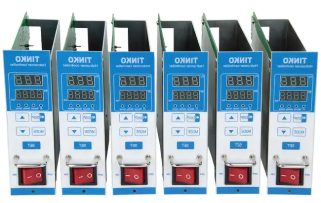

HRTC Module Card Temperature Control card customized digital display for plastic injection system

Light Handy and Easy to use
• Wide power supply range, AC85~400V
• There are 2, 4, 6, 8, 10, 12, 24 zones for customers to select.
• Thermocouple input protection, prevent module damaged by mis-connection
• Thermocouple & heater inverse protection, prevent thermocouple damaged by mis-connection
• Soft-start mode, avoid the humidity make the heater burn out
• Compatible with DME, YUDO, etc.

Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
6. Over voltage of power supply

Protection activated in the following situations:
1. Over voltage self-protectd, max.AC500V
2. Thermocouple input protection, prevent module damaged by misconnection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by misconnection
4. Soft-start mode, avoid the moisture make the heater burn out
5.Heater dehumidified time can be extended
